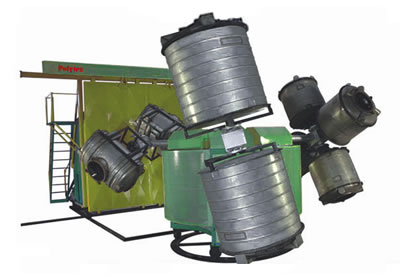

:: Bi Axial Rotomoulding Machine (Two Arm & Three Arm)
The Process:
Rotational Molding process is different as compared to other Plastics processes in which heat is prime & crucial factor.
In the complete process, first the mold is loaded with the raw material in resin form. The loaded mold is then shifted in to Hot air oven where it is oriented and rotated at suitable low speed. As the molten resin gets properly heated & oriented, it adheres to the mold’s inner surface until completely fused. Then the mold is moved to the air, water or the both to slowly reduce the temperature when the mold is still in rotating mode. Finally, the mold is dismantled to get the finished Roto molded article & is then again reloaded for the next cyclic process.
Unique Features:
- Most efficient in Fuel, Energy consumption and State of The Art Technology compared to other types of machines
- Specially designed for the energy saving environmental friendly heating chambers with efficient heat transfer technology
- Very consistent product quality due to smooth Bi-axial rotation
- Highest production due to lowest cycle time
- Uniform heating of the mould with forced air circulation in heating chamber
- Uniform distribution of material hence possible to produce tank with lesser weight
- Best compatibility in market due to lowest production cost per tank
- Straight-arm with four mould carrying carrier plates for economical working
- Lowest rejection rate due to sound & proven technology
- Machine controls are equipped with necessary interlocking, safety devices with indicators and alarm
- Environment friendly burners suitable for LPG/CNG/OIL/Duel fuels which is most fuel efficient
- Flexibility to produce double & triple layer tanks due uniform distribution of material
- AC variable drives of reputed make for all Minor & major axis’s for minute & accurate speed control
- Powder coated electrical control panel with dust proof construction & with all switch gears of either imported / highly reliable
- Control panel is equipped with AC drives, Digital indicators, temperature controller, timer, & advance automation circuit for entire process control & all necessary safety features
- Mould indexing facility
Model available in
Moving oven with Turret Machines having Two Arm/Three Arm
Moving oven with Independent Two Arm /Three Arm with 3 Stations/4 Stations
Technical Specifications:
| Particulars |
Unit |
Models |
| |
|
PTX-BI-1000 |
PTX-BI-2000 |
PTX-BI-3000 |
PTX-BI-5000 |
PTX-BI-10,000 |
| No of straight Arm |
No |
2 |
2 |
2 |
2 |
3 |
| No of Offset Arm |
No |
1 |
1 |
1 |
1 |
NIL |
| Maxi. Capacity on Offset Arm |
Ltr. |
1000 |
2000 |
3000 |
5000 |
NA |
| Maxi. Cape on straight Arm |
Ltr. |
500 x 2 |
750 x 2 |
1000 x 2 |
2500 x 2 |
5000 x 2 |
| Major & Minor Axis drives |
|
AC Variable |
AC Variable |
AC Variable |
AC Variable |
AC Variable |
| Total conn/ load |
HP |
18 |
26 |
26 |
39 |
41 |
Overall Machine dimensions
L x W x H
|
Mtr. |
8.5 x 8.5 x 4.5 |
9.5 x 9.5 x 5 |
9.5 x 9.5 x 5 |
15 x 15 x 7 |
16 x 16 x 8 |
Note: The informations given herein are in good faith but without guarantee and subject to change without notice.
|
