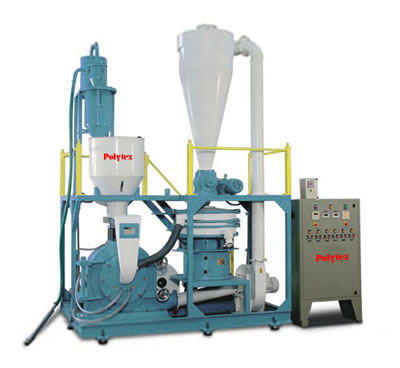

:: Pulveriser

We are a pioneer in the field of manufacturing Pulveriser with modern technology. We design and manufacture our pulverizers with the flexibility to easily evolve with your business. Your need for higher productivity, better end product surface quality, and shorter molding cycles has resulted in pulverizers that deliver maximum efficiency with minimum waste or down-time.

Unique Features:

  • Complete Robust & very sturdy structure for sound & vibration free operation
  • Low power consumption
  • Uniform Production & Increase in Output Capacity
  • Total Dust Free Environment
  • Very effective water cooling system with jacketed arrangement
  • Compact & Highly Efficient, Low maintenance
  • Main Grinding disc of superior grade material for longer life.
  • Cooling provision for Stationery disk, Mill body, duct line, Bearing Housing
  • Vibratory screen for fine re- pulverizing of course materials
  • Vibro feeder / Auto Servo control feeding system
  • Temperature monitoring of Disc Mill & thereby ease of control on feed rate
  • Powder coated Electrical panel with dust proof construction equipped with all safety features
  • Economical production cost with consistence output quality
  • Labour Savings with minimal man power
  • Complete Design with flexibility & perform fine Pulverizing of wide range of plastics materials like LLDPE, LDPE, HDPE, CROSS LINK, PVC, PBT, ABS, Nylons, Polyester and Other Polymers

Pulveriser Blade



Vibro Screen:

Vibro Screen (Gyratory Type) is part of our system with suitable size of machine according to the specification model of pulveriser. The Pulverisers come with specially designed vibro motor, single decked made of Mild Steel (optional), 20# S.S. screen with anti blinding ring type arrangement and basic structure made from heavy mild steel for long lasting. Provision for feeding pulveriser to recycle the coarse material for optimum output of the pulveriser. (it can have optional attachment - Pneumatic hopper loader Chiller PLC)

Click here for more details of Vibro Screen

Model available For LLDPE for Rotomoulding, RV.C., HOPE, PS, SILICON RUBBER, PET, AUTOMOBILE Tyres recycling plants, EVA/RUBBER/PU Blended sandals Industries, MASTER BATCH manufacturers.

Technical Specifications:

Specifications Unit Models

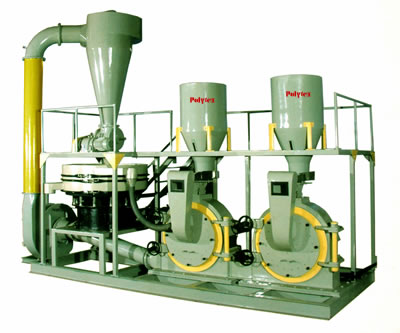

    PTX-PV-350 PTX-PV-400 PTX-PV-450 PTX-PV-550 PTX-PV-450 twin PTX-PV 550 Twin
Disc Dia mm 350 400 450 550 450 550
Main Motor AC Kw 15 22.50 30 45 30 x 2 45 x 2
Blower Motor Kw 1.5 2.25 2.25 3.65 3.65 9.2
Airlock valve Kw 0.37 0.37 0.75 1.5 1.5 1.5
Vibrating Screen Kw 0.37 0.37 0.75 0.75 0.75 1.5
Maxi. output in LLDPE ( Virgin ) Kgs/hr 60-70 80-100 120- 130 160 - 180 240- 260 300-350
Total Load
Kw 17.25 25.50 33.75 50.90 65.90 103
Floor space (L x W x H)
mm 2.0 x 2.0 x 3.5
2.5 x 2.0 x 3.5
2.5 x 2.0 x 3.5
3.0 x 2.5 x 4.5
4.5 x 2.5 x 4.5
5.5 x 2.5 x 4.5

Note: The informations given herein are in good faith but without guarantee and subject to change without notice.

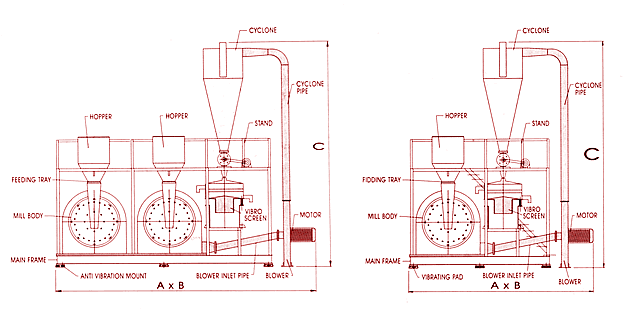

polytex_pulveriser_drawing
