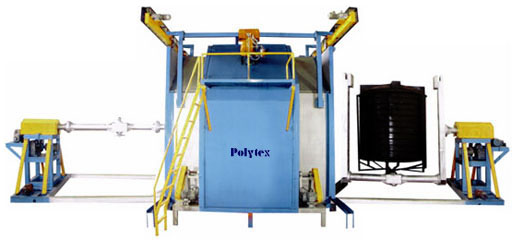

:: Shuttle Machine
Unique Features:
- Manufactured with latest technology with stringent qualit in each and every stage
- World Class Quality product in wide range for different application and rigidly confirming to international standards
- Range from 2000 Ltr. - 10000 Ltr.
- Fixed heating chamber is having both side door operated by electrical motor and it resists up to 700 degree temperature.
- Furnace Chamber is seperate and well designed giving each and every corner uniform temperature.
- Imported make Diesel / Gas / CNG fired burners are used for less fuel cost, fast heating and maintenance free performance. Auto cut off in case of failure for safety purpose.
- 2 cooling chambers having industrial fans. Water mist spray is also available optional for faster cooling.
STATION-I (Straight)
One straight arm can mount multi quantity mould according to space and size of product. Sturdy main structure is provided fo long lasting trouble free working. AC variable drive motors are given for less power consumption.
STATION-II (L Type)
One L type arm can mound big size product according to space and size of product. AC variable drive motor is given for less power consumption.
CONTROL
2 layers 3 layers can be controled without opening the dorr. AC variable drive for both stations are given and hence speed can be controled accordingly. Timer for auto reverse / forward, heat control, seperate temperature controller. Separate operator panel s provided along with mian panel.

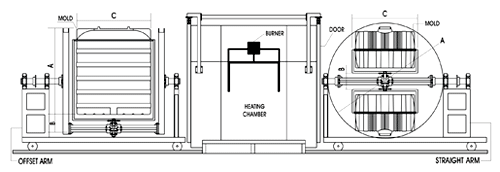

Technical Specifications:
| Model No. |
Chamber Size |
Swing Dia.
for Straight Arm |
Swing Dia.
for Offset Arm |
Connected Load HP/KW |
Required Space
in Mtr. |
| |
|
A |
B |
C |
A |
B |
C |
|
|
| PTX-SU-100A |
2.5 x 1.8 x 2.5 |
2300 |
320 |
1600 |
1300 |
250 |
1100 |
13-9.75 |
7 x 8 x 3 |
| PTX-SU-200A |
2.8 x 2.0 x 2.8 |
2600 |
370 |
1800 |
1400 |
300 |
1300 |
14-10.5 |
8 x 9 x 4 |
| PTX-SU-200B |
3.0 x 2.2 x 3.0 |
2800 |
370 |
2000 |
16000 |
350 |
1500 |
16-12 |
8 x 11 x 4 |
| PTX-SU-300 |
3.4 x 2.3 x 3.4 |
3200 |
470 |
2100 |
1800 |
400 |
1600 |
20-15 |
9 x 14 x 5 |
| PTX-SU-500 |
3.6 x 2.3 x 3.6 |
3400 |
470 |
2800 |
1900 |
400 |
2100 |
33-24.75 |
9 x 15 x 5 |
| PTX-SU-750 |
4.0 x 3.5 x 4.0 |
3800 |
500 |
3300 |
2100 |
455 |
2600 |
35-26.25 |
12 x 15 x5 |
| PTX-SU-1000 |
4.5 x 3.8 x 4.5 |
4300 |
500 |
3600 |
2800 |
455 |
2900 |
44-33 |
13 x 16 x 6 |
| PTX-SU-1500 |
5.0 x 4.0 x 5.0 |
4800 |
500 |
3800 |
3500 |
370 |
3100 |
47-35.25 |
14 x 15 x 6 |
| PTX-SU-2000 |
6.0 x 4.0 x 6.0 |
5800 |
550 |
3800 |
4000 |
400 |
3100 |
61-45.75 |
14 x 18 x 7 |
Note: All specifications are subjected to change due to continuous R & D.
|
